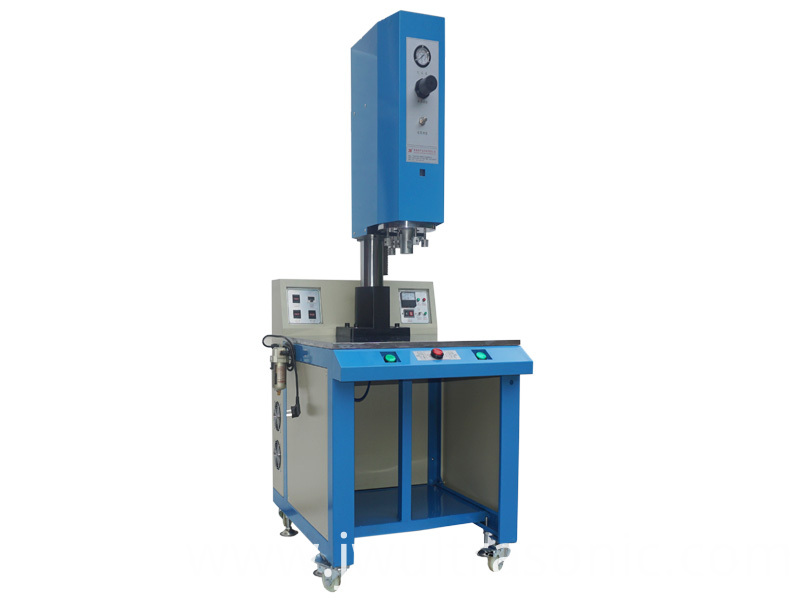

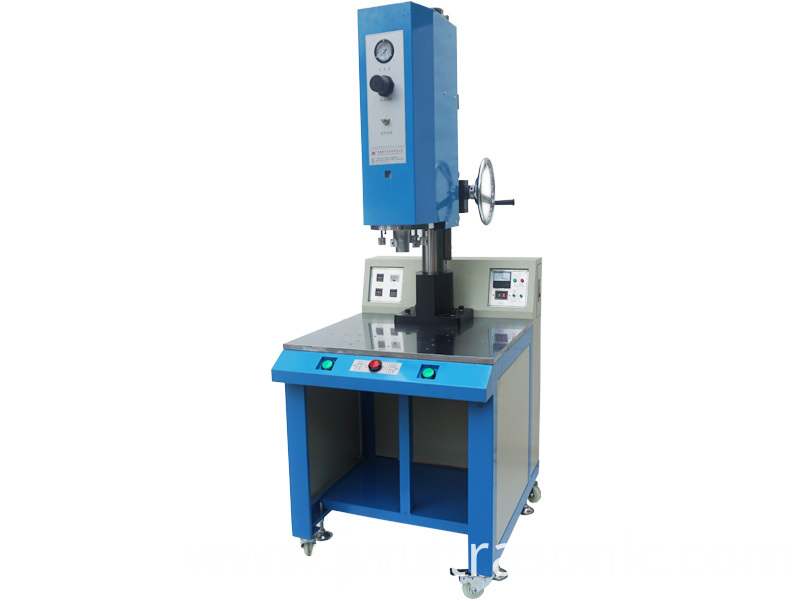

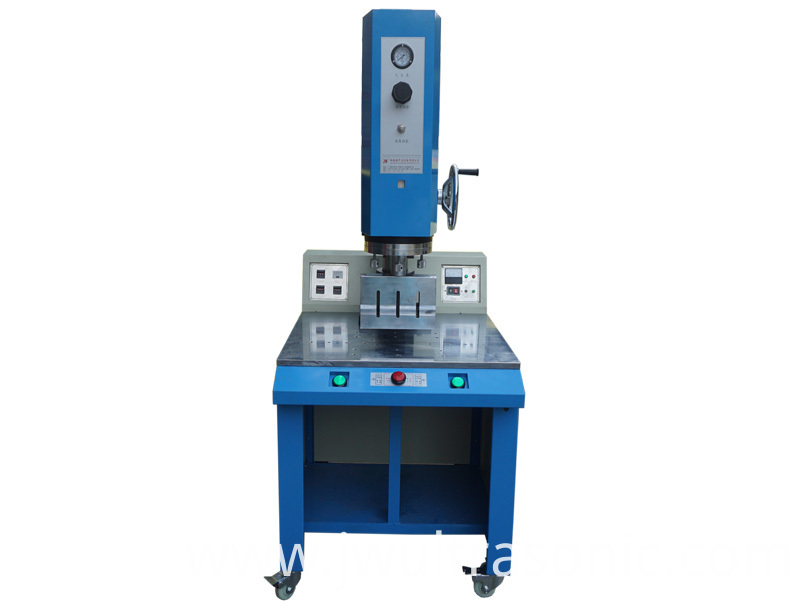

15K 4200W high-power ultrasonic plastic welder
15K 4200W high-power ultrasonic plastic welder
15K 4200W high-power ultrasonic plastic welder
15K 4200W high-power ultrasonic plastic welder

15K 4200W high-power ultrasonic plastic welder

Payment Type: T/T,Paypal
Incoterm: FOB,CIF,EXW

Additional Info

    Transportation: Ocean,Air

    Place of Origin: China

Product Description

15K (4200W) High-power Ultrasonic Plastic Welder

Features of ultrasonic plastic welder:

◆ Luxury high-power ultrasonic machine;
◆ Fine adjustment of mechanical limit with high precision;
◆ The integral limit structure of welding head is adopted to ensure that the welding does not deviate;
◆ Four-point horizontal adjustable flange structure, convenient and fast mold adjustment;
Taiwan line is adopted for stable output
◆ Digital welding parameter setting, intuitive and accurate;
◆ Perfect combination of multiple vibrators, strong and stable output;
◆ Steel amplitude converter, durable;
◆ Frequency modulation and frequency automatic compensation circuit;
◆ Welding head drop buffer setting, better achieve non-destructive appearance of precision welding;
◆ The cylinder imported from Taiwan ensures long-term high-precision welding operation of welding head;

◆ Soft-start vibration mode to avoid mold damage;


Ultrasonic Plastic Welding Machine Technical specifications:
Specification: JW-1542
◆ Output power: 4200W
◆ frequency: 15KHz
Input voltage: 220V (single-phase)
Maximum input power: 4.2kW
◆ Output time: "Fuji" time control 0.01~ 6S
◆ Current indicator: Output amplitude indicator
Pressure range: 1-7bar
◆ Cylinder stroke :100mm
Welding area: Φ 350 mm
◆ Exterior size: host size L960mmM750mmH1800mm Table size L750mmM680mm

◆ Net weight: 300kg


Ultrasonic Plastic Welding Machine suitable for the industry
Suitable for electronic industry (such as mobile phone accessories, mobile phone case, charger, Bluetooth, USB connector)
Automobile industry (e.g., body plastic parts, automobile gauges, lamps, mirrors, sunshades, bumpers, water tanks)
Toy stationery (such as folders, albums, folding boxes, pen cases, plastic toys)

As well as the medical industry, home appliances industry, non-woven clothing, office supplies, packaging industry
